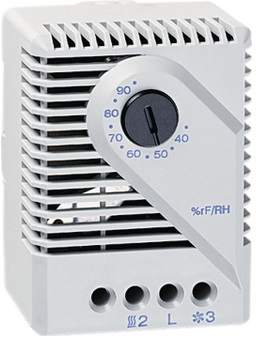

Mekanik Higrostat %10-90RH

Mekanik Higrostat %10-90RH Ayar Aralığı

• ​Permissible air velocity 15 m/sec
• Contact type change-over contact
• Contact resistance <10m O
• Switch temperature difference 4% RH (±3% tolerance)
• Service life  100,000 cycles
• Min. switching capacity AC 20 V / DC 100 mA
• Max. switching capacity AC 250 V, 5 A DC 20 W
• Connection 3-pole terminal for 2.5 mm², clamping torque 0.5 Nm max.:Rigid wire 2.5 mm² (AWG 14) stranded wire² 1.5 mm² (AWG 16)
• Mounting clip for 35 mm DIN rail, EN 60715
• Casing Plastic according to UL94 V-0, light grey
• Weight Approx. 60 g
• Dimensions 67 x 50 x 37 mm
• Operating/Storage temperature 0 to +60 °C (+32 to +140 °F) / -40 to +60 °C (-40 to +140 °F)
